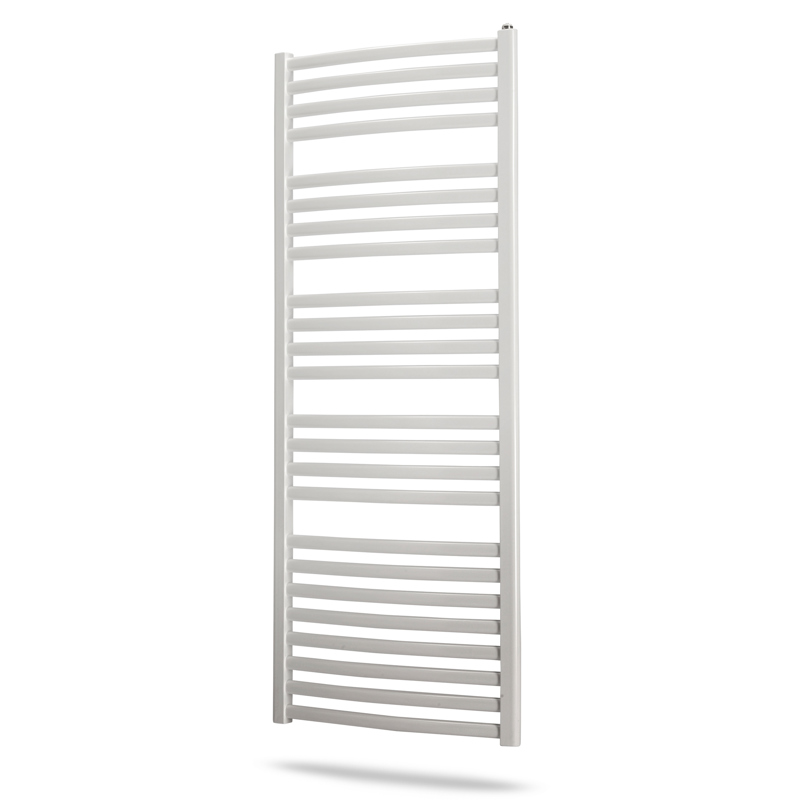

Minorca
Minorca lends the bathroom a sense of class with its unique look. Using flattened oval pipes to offer a finish perfect for those not wanting hard edges or rounded pipes. The standard finish is RAL 9016, but other RAL colours are available.
| Properties | |
| Max operating temperature °C | 110 |
| Standard | EN 442 |
| Connection dimension | 2 x G 1/2 |
| Pressure rating | PN8 |
| Material | Steel profile |
| Standard colour | White RAL 9016 |
| Types | MIN |
| Heights [mm] | 840; 1220; 1750 |
| Widths [mm] | 500 |
ETIM 18 Vertical connection
ETIM 81 Vertical connection
ETIM 51 Vertical connection
ETIM 48 Vertical connection
ETIM 11 LR Vertical connection
ETIM 88 RL Vertical connection
Purmo radiators are warranted for a period of 10 years* from date of purchase against all manufacturing defects when they are used in normal conditions and for a heating system with hot water. The warranty does not apply to defects caused by installation or handling errors, misuse or factors external to the radiators, such as water quality or oxygen-permeable pipes.
Underfloor heating products and piping systems elements are warranted for a period of 10 years**.
* 6 years for galvanized radiators and 2 years for all electronic and electric components and spare parts sold separately (side covers, top grilles, plastic clips, plugs, air vents, fixing parts)
** 30 years for PexPenta pipes
CE certificate
| Document | Category |
|---|---|
| Heat output calculation in xls for Flores, Java, Leros, Apolima, Minorca, Ios, Linosa, Andros, Nevis | Heat Output |
| Technical data sheet | Technical data sheet |
